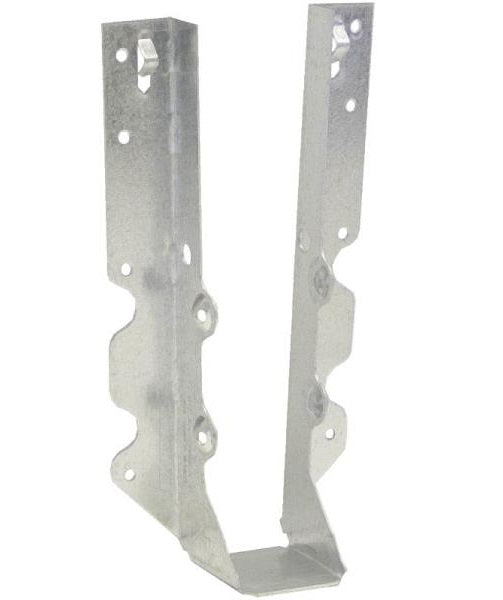

Dimples allow for 30 to 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications.
SKU: 41640141
MFG: JUS210
Shop more products by Usp Structural Connectors.
Biggest supplier for building material & supplies. Enjoy lowest price on Joist Hangers & Connectors
DETAILS
DESCRIPTION
Double shear nailing for fewer nails and faster installation. Dimples allow for 30 to 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications. Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade County, FL 11-0510.01 and 07-0419.01codes.
Highlights:
- Width: 1-9/16"
- Height: 1-3/4"
- Material: Steel
- Finish: Galvanized
- Type: Double shear, slant
- Size: 2" x 10-12"
- Style: Face mount
- Length: 7-3/4"
- Thickness: 18 ga
- Load capacity: 1305 lb
- Skew angle range: 30-45 deg
- Carrying member fastener type: (8) 10d Nail
- Carried member fastener type: (4) 10d Nail
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
JUS210
SKU:
41640141
UPC:
081942082989
Brand:
Usp Structural Connectors
