Dimples allow for 30 to 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications.
SKU: 42883643
MFG: JUS210-3TZ
Shop more products by Usp Structural Connectors.
Best building replacements goods store to buy Joist Hangers & Connectors. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION

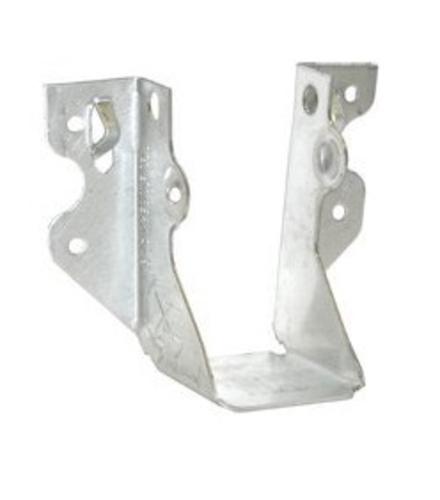

Double shear nailing for fewer nails and faster installation. Dimples allow for 30 to 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications. Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade County, FL 11-0510.01 and 07-0419.01codes.
Highlights:
- Series: JUS
- Type: Double shear, slant
- Size: 2" x 10"
- Material: Steel
- Finish: Triple zinc plated
- Width: 4-5/8"
- Height: 2"
- Style: Face mount
- Length: 8-3/8"
- Thickness: 18 gauge
- Load capacity: 1800 lb
- Skew angle range: 30-45 degree
- Carrying member fastener type: (8) 16d Nail
- Carried member fastener type: (6) 16d Nail
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
JUS210-3TZ
SKU:
42883643
UPC:
081942113003
Brand:
Usp Structural Connectors
