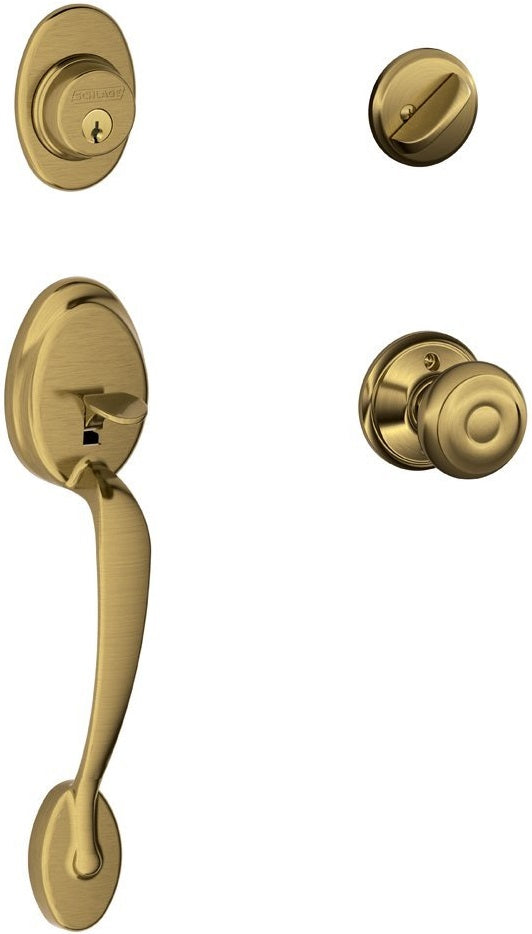

Schlage F60VPLY/GEO609 Polymouth Hadleset With Georgian Knob

---

DESCRIPTION

Highlights :

• For residential single and multi-family entrance doors
• Deadbolt thrown or retracted by key from outside or by inside turn unit
• Latch retracted by thumbpiece from inside or outside grip
• Solid forged brass outside trim, wrought brass trim rings with concealed security inserts. Wrought brass inside trim
• Wrought brass cylinder trim rings reinforced by tapered die cast security insert for resistance to wrenching or prying
• All handlesets have the same finish for both interior and exterior parts except the Bright Brass finish which has a bright brass finish on all interior parts and Ultima Lifetime Anti-Tarnish finish on all exterior parts

Specifications:

• Door Prep: 1-1/2" or 2-1/8" deadbolt and 2-1/8" latchbolt Crossbore; 7/8" or 1" Edge Bore; 1" x 2-1/4" Latch Faces; 4" CTC
• Door Thickness: 1-5/8" to 1-3/4"; packed with extra mounting screws to accommodate 2" doors
• Cylinder: 5-pin with nickel silver pins and keys (2)
• Facelates: 1" x 2-1/4"
• Strikes: Deadbolt - 1-1/8" x 2-3/4", square corner, no lip, dust box and door frame reinforcer; Latchbolt - 1-5/8" x 2-1/4" full lip
• Bolt: Maximum Security B300 single cylinder or B362 double cylinder deadbolt with 7/8" housing diameter, 1" throw
• ANSI/BHMA: Grade 1 Security features
• Dual Option Universal: Both handleset and deadbolt fit all doors, 2-3/8" or 2-3/4" backset; square corner, round corner, or drive-in preps
• With Single Cylinder Deadbolt & Visual Pack
• Finish: Antique Brass
