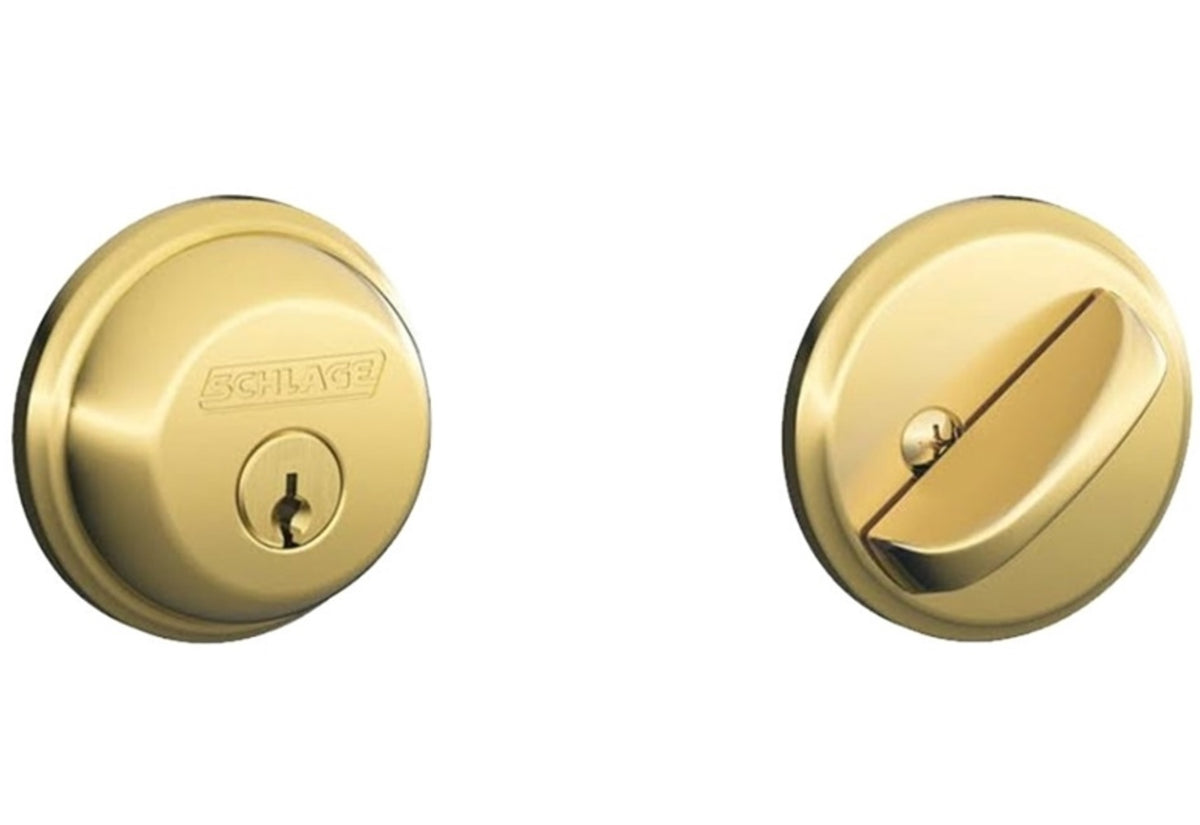

Schlage B60N505 Deadbolt, 1-Cylinder, Ultima Bright Brass

Schlage B60N505 Deadbolt, 1-Cylinder, Ultima Bright Brass
Write a review
For residential single and multi-family entrance doors. Deadbolt thrown or retracted by key outside, or by turn unit inside; bolt automatically deadlocks when fully thrown.
SKU: 43092269
MFG: B60N505
Shop more products by Schlage.

In Stock
Request a Bulk Quote

Thank you for your quote request. We will be in touch.




  • Finish: Ultima Bright Brass
  • Dual option universal latchbolt
  • 7/8" Wrought brass trim ring reinforced with security inserts
  • Concealed spin ring rotates to protect against wrenching the cylinder
  • Solid steel door frame reinforcer with 3" screws protects against kick-in attack
  • Solid, 1 piece design protects against hammer and crowbar prying attacks
  • 2-1/2" steel adapter ring, plated to match, provided for accommodating 2-1/8" crossbore. Hands free installation
  • Door Prep: 1-1/2" or 2-1/8" crossbore; 7/8" edge bore; 1" x 2-1/4" latch face
  • Door Thickness: 1-3/8" to 1-3/4"
  • Cylinder: solid brass, 5-pin, tumbler C keyway with nickel silver, pick resistant, spool pins and 2 nickel silver, 5-pin, C section keys
  • Faceplate: 1" x 2-1/4"
  • Strikes: 1-1/8" x 2-3/4", no lip, with dust box and door frame reinforcer
  • Bolt: 7/8" housing and 1" throw with concealed hardened steel roller to prevent cutting or sawing
  • ANSI/BHMA: Exceeds A 156.5, 1992 Grade 2 with Grade 1 security features
  • Dual Option Universal: Fits all doors, 2-3/4" or 2-3/8" backset; square corner, round corner, or drive-in preps


MFR: B60N505
SKU: 43092269
UPC: 043156228447
Brand: Schlage
