DETAILS
Description
DESCRIPTION
Highlights:

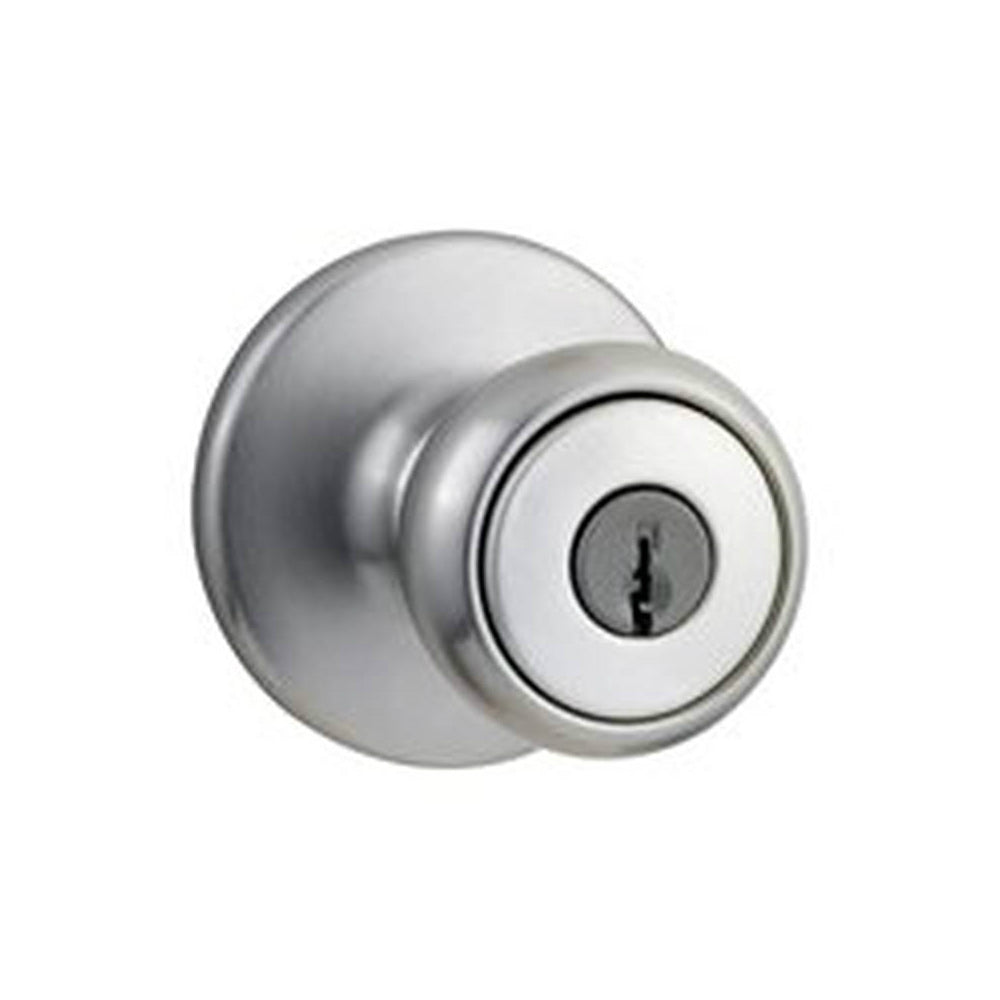

Tylo series
Key Number : K3
Diameter : 1-7/8"
Length : 2-5/8"
Width : 2-1/2"
DOOR PREP : 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face
BACKSET : 2-3/8" standard and adjustable 2-3/8" and 2-3/4" optional
DOOR THICKNESS : 1-3/8" to 1-3/4"
CYLINDER : 5-pin
FACEPLATES : 1" x 2-1/4" round corner
STRIKES: 2-1/4" full lip round corner
HANDING : Reversible for right or left hand doors
ANSI/BHMA : Grade 3
Satin Chrome finish
Includes : 1/2" Throw- Bolt
Plate Size : 1" x 2-1/4"
Features adjustable latch to fit all standard door preparations
Kwikset door knobs are available in multiple styles and finishes
Exposed screws on the interior knob
Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks
For keyed exterior doors
Both bell-shaped knobs lock or unlock by key outside or turnbutton inside
