Ives FB31PUS32 "FB31P SERIES" AUTOMATIC TOP AND BOTTOM FLUSH BOLTS - BRIGHT STAINLESS STEEL

buy door hardware parts & accessories at cheap rate in bulk. wholesale & retail hardware repair kit store. home décor ideas, maintenance, repair replacement parts
Write a review
"IVES" AUTOMATIC TOP AND BOTTOM FLUSH BOLTS This "Ives" FB31P Automatic Top and Bottom Flush Bolt for Metal Doors  is fully Automatic—inactive door is latched when activ
SKU: 42540853
MFG: FB31PUS32
Shop more products by Ives.

Get best discount deals on hardware repair kit. Your one-stop shop for buying Door Hardware Parts & Accessories

Sold out
$125.99
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

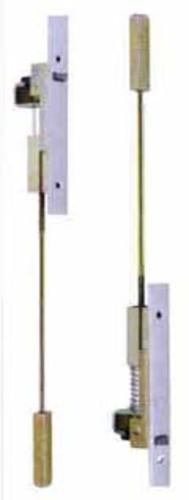

"IVES" AUTOMATIC TOP AND BOTTOM FLUSH BOLTS

This "Ives" FB31P Automatic Top and Bottom Flush Bolt for Metal Doors  is fully Automatic—inactive door is latched when active door closes, bolts retract when active door is opened. Optional Dust Proof Strikes—DP1 or DP2, prevents dirt build-up assuring full engagement of bottom bolt. Finished Cover Plates permit finish changes in stock or at job site. Top and Bottom Bolts: Both bolts are nonhanded, but are not identical. The top bolt has no spring tension, resulting in lower actuation force with a smoother operation.

Highlights:

  • Non-handed.
  • Bright Stainless Steel finish
  • Bolts have 3/4" throw with a 7/8" vertical adjustment.
  • Low Actuation Forces—Top Bolt Has No Spring Tension.
  • Fits standard ANSI A115.4 Door Frame Preparations.
  • UL Listed 3 hours on 8'0" x 10'0" Opening.
  • Models with Auxiliary Fire Latch eliminates the bottom bolt and is UL Listed for Fire Doors.
  • Both bolts are nonhanded, but are not identical. The top bolt has no spring tension, resulting in lower actuation force with a smoother operation.
  • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.

Specifications:

  • Body Size: 1" Wide x 6-3/4" Long x 2" Deep
  • Guide Size: 1" Wide x 1-27/32" Long x 27/32" High x 3/32" Thick
  • Strike Size: 15/16" Wide x 2-1/4" Long x 1/16" Thick
  • Rub Plate Size: 1-1/4" Wide x 1-11/16" Long x 3/64" Thick
  • Auxiliary Fire Latch Size: 1" Wide x 1-3/4" Long x 3-1/4" Deep
  • Filler Plate Size: 1" Wide x 6-3/4" Long x 3/32" Thick

FEATURES

MFR: FB31PUS32
SKU: 42540853
Brand: Ives
