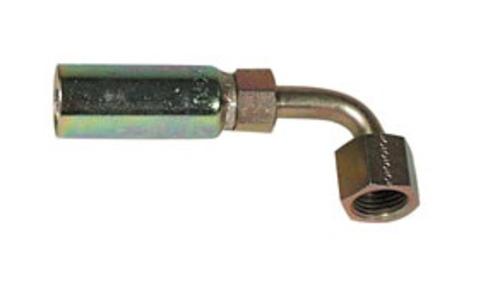

- U-series flat face coll-o-crimp female for-seal swivel short drop 90° elbow hose end
- For use with H017, H039, H104, H105, H114, H115, H145, H146, H245, H324, H325, H350, H425, and H545 hoses
- For use with O-Ring, Part No. 99492
- Cross Reference: 06U-A28
- Applications: general purpose low, medium, and high pressure hydraulics
- Finish: zinc; clear trivalent chromate
- Hex Size: 0.9375"
- Hose Cutoff Factor: 0.26"
- Hose Inner Diameter: 3/8"
- Material: Low Carbon Steel
- Series: U
- Style: female for-seal swivel short drop 90° elbow
- System of Measurement: Fractional
- Thread Size: 13/16–16"
- Tube size: 1/2"
- Type: Crimp Hose End
- Working Pressure: determined by maximum working pressure for hose size and hose end configuration whichever is lesser
