Working pressure up to 10,000 psi, depending on tube and fitting size. Used with copper, brass, steel, aluminum, and other tubing that can be flared. Good resistance to vibration.
SKU: 42600880
MFG: 97224
Shop more products by Imperial.
Best online store to shop plumbing materials & goods. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION
Working pressure up to 10,000 psi, depending on tube and fitting size. Used with copper, brass, steel, aluminum, and other tubing that can be flared. Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required. Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
Highlights:
- Thread Size: 1-5/8–12
- Tube Outside Diameter: 1-1/4"
- Cross Reference: TF5506 x 20

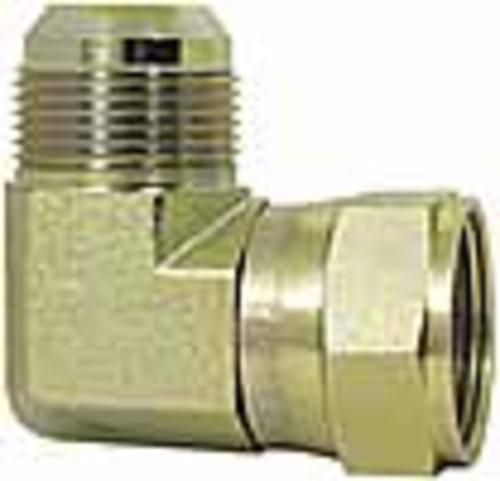

- SAE 37° (JIC) Steel Swivel Nut 90° Elbow Fitting
- Meets or exceeds ASA, ASME, SAE, and MS specifications
Assembly Instructions:
-
Tighten assembly with a wrench
- Slide nut on tubing. Threaded end of nut must face out
- Assemble tubing to fitting body. Tube nut should be turned hand tight
- Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out
- Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off
