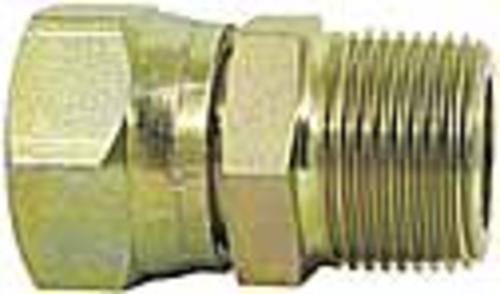

Imperial 97207 Male Pipe Adapter Fitting 5/8" X 1/2"

---

DESCRIPTION

Highlights:-

• Pipe Adapter
• SAE 37° (JIC) Steel Female 37° JIC Swivel to Male Pipe Adapter Fitting.
• Working pressure up to 10,000 psi, depending on tube and fitting size.
• Used with copper, brass, steel, aluminum, and other tubing that can be flared.
• Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
• Meets or exceeds ASA, ASME, SAE, and MS specifications.
• Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
• Tube Outside Diameter: 5/8
• Thread Size: 7/8–14
• Pipe Thread: 1/2
• Cross Reference: 9100 x 10 x 8
