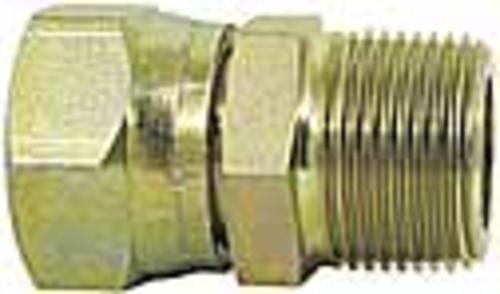

Imperial 97200 Male Pipe Adapter Fitting, Steel, 1/4" x 1/4"

---

DESCRIPTION

Highlights:

• SAE 37 Degree (JIC) Steel Female 37 Degree JIC Swivel to Male Pipe Adapter Fitting
• Working pressure up to 10,000 psi, depending on tube and fitting size
• Used with copper, brass, steel, aluminum and other tubing that can be flared
• Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment
• Meets or exceeds ASA, ASME, SAE and MS specifications
• Good resistance to vibration, Use two or three piece nut design where greater vibration resistance is required
• Tube Outside Diameter: 1/4
• Thread Size: 7/16–20
• Pipe Thread: 1/4
• Cross Reference: 9100 x 4 x 4
• Assembly Instructions:
  1. Slide nut on tubing, Threaded end of nut must face out
  2. Slide sleeve on tubing (3-piece assembly), Collar end of sleeve must face out
  3. Flare tubing and check flare diameter, Examine for excessive thin-out, On thin wall tubing, use double flare to prevent pinch-off
  4. Assemble tubing to fitting body, Tube nut should be turned hand tight
  5. Tighten assembly with a wrench
