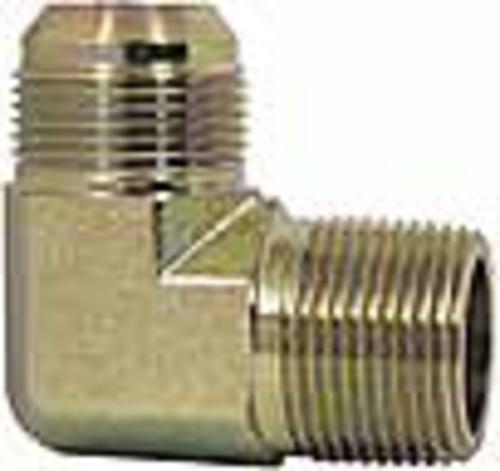

Imperial 96432 Male Elbow Fitting 3/8 x 1/8", Steel

buy steel, brass & chrome pipe fittings at cheap rate in bulk. wholesale & retail plumbing repair tools store. home décor ideas, maintenance, repair replacement parts
Write a review
Male Steel Elbow SAE 37 (JIC) Steel 90 Male Elbow Fitting. Working pressure up to 10,000 psi, depending on tube and fitting size. Used with copper, brass, steel
SKU: 42584135
MFG: 96432
Shop more products by Imperial.

Best plumbing repair tools store to buy Steel, Brass & Chrome Pipe Fittings. Save big with Life and Home discount coupons

Sold out
$15.26
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:-

  • Male Steel Elbow Fitting
  • SAE 37° (JIC) Steel 90° Male Elbow Fitting.
  • Working pressure up to 10,000 psi, depending on tube and fitting size.
  • Used with copper, brass, steel, aluminum, and other tubing that can be flared.
  • Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
  • Meets or exceeds ASA, ASME, SAE, and MS specifications.
  • Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
  • Tube Outside Diameter: 3/8
  • Thread Size: 9/16–18
  • Pipe Thread: 1/8
  • Cross Reference: C5405 x 6 x 2

Assembly Instructions:

  • Slide nut on tubing. Threaded end of nut must face out.
  • Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
  • Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
  • Assemble tubing to fitting body. Tube nut should be turned hand tight.
  • Tighten assembly with a wrench.

FEATURES

MFR: 96432
SKU: 42584135
Brand: Imperial
