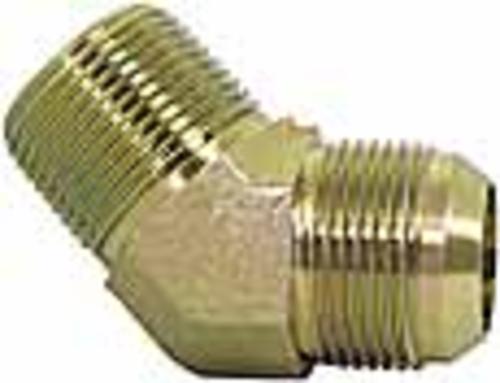

Imperial 96390 Male Elbow Fitting 1/2" X 3/8" Steel

buy galvanized elbow 45 deg at cheap rate in bulk. wholesale & retail bulk plumbing supplies store. home décor ideas, maintenance, repair replacement parts
Male Elbow Fitting SAE 37 (JIC) Steel 45 Male Elbow Fitting. Working pressure up to 10,000 psi, depending on tube and fitting size. Used with copper, brass, ste
SKU: 42583881
MFG: 96390
Shop more products by Imperial.

Get best discount deals on bulk plumbing supplies. Your one-stop shop for buying Galvanized Elbow 45 Deg

Sold out
$23.14
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:-

  • Male Elbow Fitting
  • SAE 37° (JIC) Steel 45° Male Elbow Fitting.
  • Working pressure up to 10,000 psi, depending on tube and fitting size.
  • Used with copper, brass, steel, aluminum, and other tubing that can be flared.
  • Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
  • Meets or exceeds ASA, ASME, SAE, and MS specifications.
  • Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
  • Tube Outside Diameter: 1/2
  • Thread Size: 3/4–16
  • Pipe Thread: 3/8
  • Cross Reference: C5355 x 8 x 6

Assembly Instructions:

  • Slide nut on tubing. Threaded end of nut must face out.
  • Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
  • Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
  • Assemble tubing to fitting body. Tube nut should be turned hand tight.
  • Tighten assembly with a wrench.

FEATURES

MFR: 96390
SKU: 42583881
Brand: Imperial
