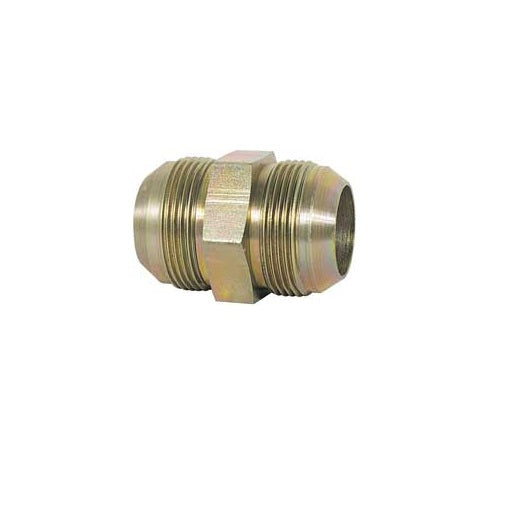

Used with copper, brass, steel, aluminum, and other tubing that can be flared. Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
SKU: 42583833
MFG: 96372
Shop more products by Imperial.
Get best discount deals on professional plumbing tools. Your one-stop shop for buying Brass Flare Pipe Fittings & Unions
DETAILS
DESCRIPTION
Highlights:
- Tube Outside Diameter: 1/2"
- Tube Outside Diameter: 3/8"
- Thread Size: 3/4-16 x 9/16-18
- Working pressure up to 10,000 psi, depending on tube and fitting size
- Used with copper, brass, steel, aluminum, and other tubing that can be flared
- Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required
- Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment
- Meets or exceeds ASA, ASME, SAE, and MS specifications
- Cross Reference: C5305 x 8 x 6
Assembly Instructions:
- Slide nut on tubing. Threaded end of nut must face out
- Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out
- Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off
- Assemble tubing to fitting body. Tube nut should be turned hand tight
- Tighten assembly with a wrench
FEATURES
MFR:
96372
SKU:
42583833
Brand:
Imperial
