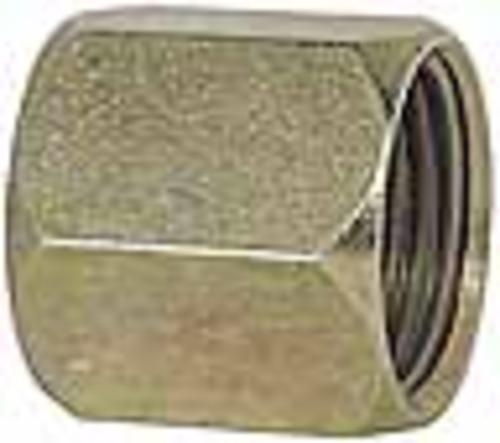

The 37 Degree JIC Nut Fittins are used with copper, brass, steel, aluminum, and other tubing that can be flared. Working pressure up to 10,000 psi, depending on tube and fitting size.
SKU: 42583030
MFG: 96217
Shop more products by Imperial.
Buy Brass Flare Pipe Fittings & Nuts on sale from largest plumbing tools & equipments store in USA
DETAILS
DESCRIPTION
Highlights:
- Tube Outside Diameter: 1/4"
- Thread Size: 7/16"-20
- Material: Carbon Steel - AISI/SAE 12L14
- Finish: Trivalent Zinc Plated
- Grade: 12L14
- Tube Flare: 37 degree
- Fitting Style: JIC
- Fitting Type: Flare Fitting
- System of Measurement: Fractional
- Vibration Resistance: Good
- Temperature Range (Deg F): -65 to +400 deg. F
- Working Pressure: Up to 6,000 psi
- Heat Treated: No
- DOT Approved: No
- Cross Reference: C5105 x 4
- Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment
- Meets or exceeds ASA, ASME, SAE, and MS specifications
- Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required
- Per Package of 5
