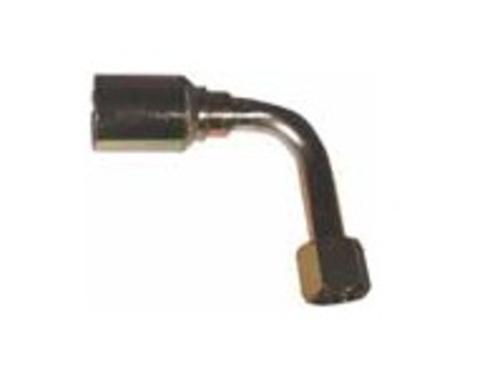

Imperial 93239 U Series High Pressure Female Swivel 90 Degree Tube Elbow, 1" x 1"

---

DESCRIPTION

Highlights:

• Hose is no-skive when used with this hose end
• Cross Reference: 43016U-656L56
• For use with H039, H145, H245, H350, H425, H430, H439, and H545 hose
• Note: Requires a special T-420 Collet on a T-420 Coll-O-Crimp machine, no spacer ring required

Specifications:

• Applications: Very high pressure hydraulic lines subjected to pressure surges and flexing
• Finish: Zinc; Clear Trivalent Chromate
• Hex Size: 1.50"
• Hose Cutoff Factor: 3"
• Hose Inner Diameter: 1"
• Material: Low Carbon Steel
• Series: 430 U
• Style: JIC 37° female swivel 90° tube elbow
• System of Measurement: Fractional
• Thread Size: 1-5/16–12
• Tube Flare: 37°
• Tube Size: 1"
• Type: Crimp Hose End
• Working Pressure: determined by maximum working pressure for hose size and hose end configuration whichever is lesser
