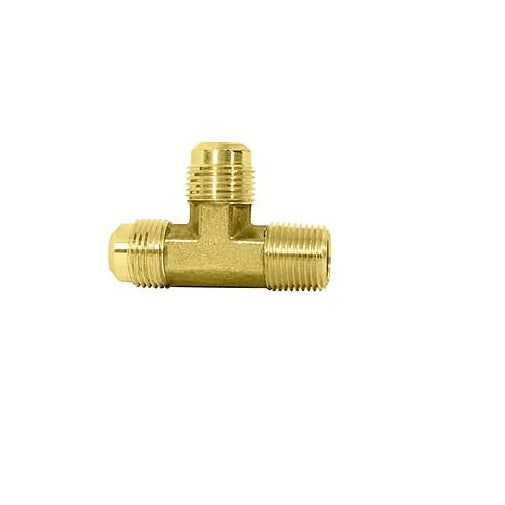

Used with copper, brass, aluminum, and steel hydraulic tubing that can be flared. Good resistance to vibration. Use Long Nut in applications with severe vibration. Per package of 5.
SKU: 42595405
MFG: 90282
Shop more products by Imperial.
Biggest plumbing materials & goods retail store to buy Brass Flare Pipe Fittings & Tees
DETAILS
DESCRIPTION
Highlights:
- Pipe Thread: 1/8"
- Thread Size: 1/2-20
- Tube Outside Diameter: 5/16"
- 45 Degree Flare Tube Fittings flare fittings are reusable
- Good resistance to vibration. Use Long Nut in applications with severe vibration
- Used with copper, brass, aluminum, and steel hydraulic tubing that can be flared
- Working pressure up to 2,000 psi, depending upon tubing being used. (Will withstand burst pressure up to 5,000 psi)
- Temperature Range: -65 degree F. to 250 degree F. at maximum operating pressures
- 45 Degree Flare Tube Fittings conform to ASA, ASME, SAE, and Mil. specifications
- Cross Reference: 51 x 5
- Per package of 5
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm
FEATURES
MFR:
90282
SKU:
42595405
Brand:
Imperial
