The collar swaged into the pin grooves forms a vibration proof connection. High uniform installed values reduce rework and warranty claims.
SKU: 42675920
MFG: 78048
Shop more products by Imperial.
Get best discount deals on hardware repair tools. Your one-stop shop for buying Nuts, Bolts, Screws & Fasteners
DETAILS
DESCRIPTION

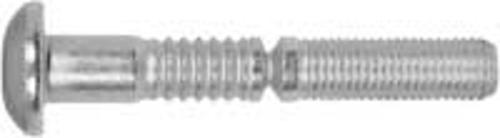

The collar swaged into the pin grooves forms a vibration proof connection. High uniform installed values reduce rework and warranty claims. Consistent shear strength, clamping force, and tensile strength every time.
Highlights:
- Pin Diameter: 10 (5/16)
- Grip Range: Minimum .250 – Maximum .500
- Huck Cross Reference: C6LB-R10-6G
- Use with Flange Collar, Catalog ID: 42675872
- Used in truck and trailer repairs
- Bazier head
- Zinc plated
- Pack of 100
Fastener Dimensions:
- A: .322 – .317
- B: .656 – .594
- C: .201 – .181
- D (1/32 variance): .874
- E (1/8 variance): 2.035
C6L Huckbolt Fastener Values:
- Shear: 4,725
- Clamp: 2,810
- Tensile: 4,600
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm
FEATURES
MFR:
78048
SKU:
42675920
Brand:
Imperial
