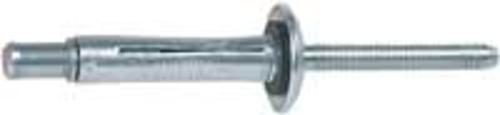

Imperial 75676 Klamp Tite Rivet, 1/4" Dia x 3/8" Grip, Pkg/100

buy nails, tacks, brads & fasteners at cheap rate in bulk. wholesale & retail hardware repair kit store. home décor ideas, maintenance, repair replacement parts
Write a review
Producing a powerful material clamping action. It also provides an exceptionally large blind side bearing area, critical when fastening thin sheets or brittle materials, or when holes are oversized.
SKU: 42677331
MFG: 75676
Shop more products by Imperial.

Shop for Nails, Tacks, Brads & Fasteners on sale from the biggest hardware repair kit store in USA

Sold out
$0.55
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Diameter: 1/4
  • Head Diameter: 9/16
  • Grip Range: .187 - .375
  • Body Length: 1.050
  • Shear: 1,250,Tensile: 700
  • Cross Reference: BAPKTR-8W6
  • Use Power Riveter GHA 743 for installation.
  • Klamp-Tite Rivet (K.T.R.) - "The rivet with the big footprint!"
  • Rivet Material: Shell -5056 aluminum, Mandrel - 5057 aluminum, waxed finish
  • Special Nose Piece, Part No. 75636 requried for installation of 3/16" diameter Klamp-Tite rivets.
  • Each Klamp-Tite rivet has a neoprene washer located just under the head, giving it complete weather integrity.
  • One Klamp-Tite rivet covers a wide range of material thicknesses, reducing fastener inventories to the minimum.
  • The Klamp-Tite rivet sleeve upsets in three segments, producing a powerful material clamping action. It also provides an exceptionally large blind side bearing area, critical when fastening thin sheets or brittle materials, or when holes are oversized.
  • Klamp-Tite mandrels swell the rivet sleeve to fill and seal the hole, then break flush with the rivet head (over the entire grip range) and are locked mechanically in place. Results: a smooth, attractive, low-profile head every time, with no secondary trimming required!
  • Quantity: 100 per package

FEATURES

MFR: 75676
SKU: 42677331
Brand: Imperial
