Fastens thick or thin materials and will not strip out. Gives the appearance of a solid or bucked rivet. Mandrel breaks flush with head and requires a special nose tip.
Thank you for your quote request. We will be in touch.
DETAILS
Description
DESCRIPTION
Highlights:
Diameter: 1/4"
Grip Range: .250 - .500
Head Diameter: .543
Length Under Head: 1-1/4"
Shear: 1,100
Tensile: 675

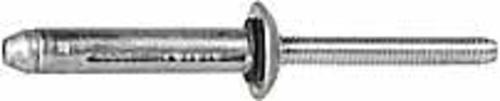

Bulb-Tite® Blind Rivet
Quantity: 500 per package
Cross Reference: RV6606-8-8W
Aluminum Rivet/Aluminum Mandrel
The three large bulbs on the blind side distribute the load over a large area to avoid damage to plastics, fiberglass, wood, and other sensitive materials
Fastens thick or thin materials and will not strip out
Mandrel breaks flush with head and requires a special nose tip
Gives the appearance of a solid or bucked rivet
Contains a EPDM washer under the head for weather resistance
Use Power Riveter GHA 743 for installation
Special Nose Piece, Part No. 75299 requried for installation
