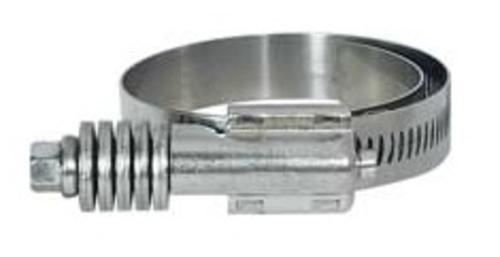

Eliminate hose connection leaks with a revolutionary new clamp that reacts to changes in hose systems by actually increasing or decreasing its own diameter as the system expands or contracts.
SKU: 42672405
MFG: 72368
Shop more products by Imperial.
Shop for Automotive Hoses on sale from the biggest automotive repair tools store in USA
DETAILS
DESCRIPTION
Highlights:
- Solid stainless steel clamp assembly
- Eliminates coolant loss due to cold flow leakage, and greatly minimizes clamp maintenance
- Automatically adjusts to operational or environmentaltemperatures
- Used by most OEM's
- Used on all radiator, silicone heater, and air charged after cooler hose connections
- Each clamp contains a visual torque check to ensure proper torque
- Eliminate hose connection leaks with a revolutionary new clamp that reacts to changes in hose systems by actually increasing or decreasing its own diameter as the system expands or contracts
- Maximum Installation Torque: 50-125 inch lb
- Screw Tip Extension "A": 1/4"
- Size: #88
- Cross Reference: CT600L
- Clamp is installed correctly when the screw tip "A" ("Torque Check") is extended beyond the housing, and the belleville washer stacks are nearly collapsed flat
Specifications:
- Size: 612
- Band Width: 5/8"
- Maximum Clamp Diameter: 6-1/8"
- Minimum Clamp Diameter: 5-1/4"
- Style: T-Bolt
- System of Measurement: Fractional
- Type: Hose Clamp
FEATURES
MFR:
72368
SKU:
42672405
Brand:
Imperial
