Shanks fully threaded to within 1/8" to 3/8" of shoulder depending on the diameter. Safe work load is drastically lowered when loading at any angle. Avoid loading at angles greater than 45° from the center of the bolt.

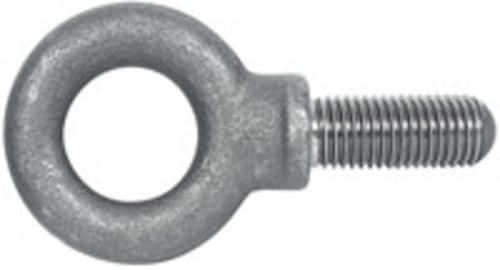

- Shoulder Eye Bolt
- Drop forged C1035 heat treated steel
- Self colored
- Designed for lifting
- National coarse thread
- Bolt Diameter: 3/4–10
- Shank Length: 2"
- Inside Diameter of Eye: 1-1/2
- Outside Diameter of Eye: 2-13/16
- Safe work load lb on a straight pull: 5,000 lb
