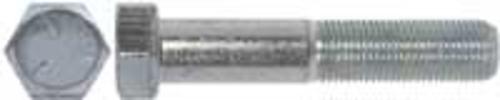

Imperial 21133 Sae Hex Head Cap Screw, Grade 5, 5/16x3, Pkg/100

buy nuts, bolts, screws & fasteners at cheap rate in bulk. wholesale & retail construction hardware equipments store. home décor ideas, maintenance, repair replacement parts
Conforms to SAE Grade 5 physical and mechanical specifications, Zinc plated for corrosion resistance, Size: 5/16X3, Thread pitch: 5/16-24 UNF, Pkg/100
SKU: 42617610
MFG: 21133
Shop more products by Imperial.

We offer lowest price on Nuts, Bolts, Screws & Fasteners. With Life and Home you always get the best deals

Sold out
$0.44
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Size: 5/16X3
  • Thread pitch: 5/16-24 UNF
  • Conforms to SAE Grade 5 physical and mechanical specifications
  • Zinc plated for corrosion resistance
  • Pack of 100

Technical Data:

  • Material and Mechanical Properties of SAE J429
  • Dimensions: ANSI/ASME B18.2.1 Hex Head Cap Screws
  • Tensile: 1/4" - 1" Nominal Diameter 120,000 psi (minimum) over 1" Nominal Diameter 105,000 psi (minimum)
  • Proof Load: 1/4" - 1" Nominal Diameter 85,000 psi; over 1" Nominal Diameter 74,000 psi
  • Threads: Radius Root Class 2A to ANSI/ASME B1.1
  • Hardness: 1/4" - 1" Nominal Diameter Rockwell C25-C34; over 1" Nominal Diameter C19-C30
  • Decarburation: SAE J121
  • Discontinuities: SAE J1061

Rule of thumb to figure bolt thread length:

  • For bolts under 6": Twice the bolt diameter plus a 1/4"
  • For bolts over 6": Twice the bolt diameter plus a 1/2"
  • This gives you the approximate bolt thread length available

FEATURES

MFR: 21133
SKU: 42617610
Brand: Imperial
