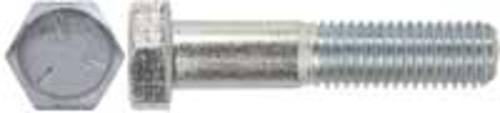

Imperial 20229 USS Hex Head Cap Screw, Grade 5, 9/16x3-1/2

buy nuts, bolts, screws & fasteners at cheap rate in bulk. wholesale & retail construction hardware goods store. home décor ideas, maintenance, repair replacement parts
Conforms to SAE Grade 5 physical and mechanical specifications, Zinc plated for corrosion resistance, Size: 9/16X3-1/2, Thread pitch: 9/16-12 UNC
SKU: 42620373
MFG: 20229
Shop more products by Imperial.

Best construction hardware goods store to buy Nuts, Bolts, Screws & Fasteners. Save big with Life and Home discount coupons

Sold out
$1.38
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Size: 9/16X3-1/2
  • Thread pitch: 9/16-12 UNC
  • Conforms to SAE Grade 5 physical and mechanical specifications
  • Zinc plated for corrosion resistance

Technical Data:

  • Material and Mechanical Properties of SAE J429
  • Dimensions: ANSI/ASME B18.2.1 Hex Head Cap Screws
  • Tensile: 1/4" - 1" Nominal Diameter 120,000 psi (minimum) over 1" Nominal Diameter 105,000 psi (minimum)
  • Proof Load: 1/4" - 1" Nominal Diameter 85,000 psi; over 1" Nominal Diameter 74,000 psi
  • Threads: Radius Root Class 2A to ANSI/ASME B1.1
  • Hardness: 1/4" - 1" Nominal Diameter Rockwell C25-C34; over 1" Nominal Diameter C19-C30
  • Decarburation: SAE J121
  • Discontinuities: SAE J1061

Rule of thumb to figure bolt thread length:

  • For bolts under 6": Twice the bolt diameter plus a 1/4"
  • For bolts over 6": Twice the bolt diameter plus a 1/2"
  • This gives you the approximate bolt thread length available

FEATURES

MFR: 20229
SKU: 42620373
Brand: Imperial
