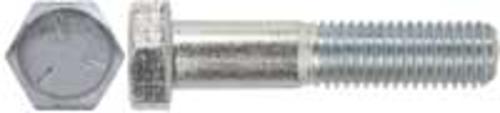

Imperial 20198 USS Hex Head Cap Screw, Grade 5, 1/2x1-1/2, Pkg/50
Conforms to SAE Grade 5 physical and mechanical specifications, Zinc plated for corrosion resistance, Size: /2X1-1/2, Thread pitch: 1/2-13 UNC
Best heavy duty hardware tools store to buy Nuts, Bolts, Screws & Fasteners. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION
Highlights:
- Size: /2X1-1/2
- Thread pitch: 1/2-13 UNC
- Grade 5 USS Hex Head Cap Screw
- Conforms to SAE Grade 5 physical and mechanical specifications
- Zinc plated for corrosion resistance
- Pack of 50
Technical Data:
- Material and Mechanical Properties of SAE J429
- Dimensions: ANSI/ASME B18.2.1 Hex Head Cap Screws
- Tensile: 1/4" - 1" Nominal Diameter 120,000 psi (minimum) over 1" Nominal Diameter 105,000 psi (minimum)
- Proof Load: 1/4" - 1" Nominal Diameter 85,000 psi; over 1" Nominal Diameter 74,000 psi
- Threads: Radius Root Class 2A to ANSI/ASME B1.1
- Hardness: 1/4" - 1" Nominal Diameter Rockwell C25-C34; over 1" Nominal Diameter C19-C30
- Decarburation: SAE J121
- Discontinuities: SAE J1061
Rule of thumb to figure bolt thread length:
-
For bolts under 6": Twice the bolt diameter plus a 1/4"
-
For bolts over 6": Twice the bolt diameter plus a 1/2"
-
This gives you the approximate bolt thread length available
FEATURES
MFR:
20198
SKU:
42620163
Brand:
Imperial
