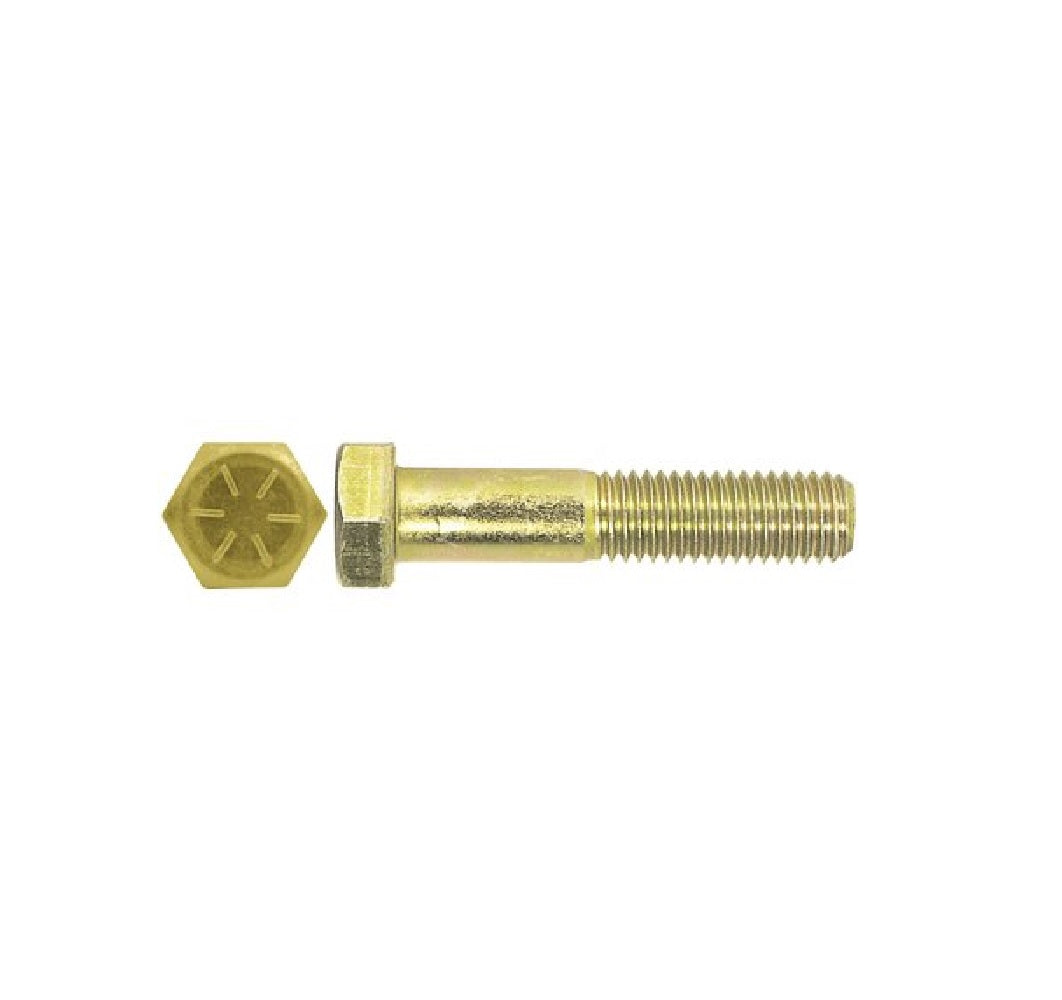

Imperial 17819 Sae Hex Head Cap Screw, Grade 8, 1X10

buy nuts, bolts, screws & fasteners at cheap rate in bulk. wholesale & retail construction hardware items store. home décor ideas, maintenance, repair replacement parts
Material: medium carbon alloy steel, Tensile: 150,000 psi minimum, Unplated, Thread pitch: 1"-14 UNF, Size: 1X10
SKU: 42625800
MFG: 17819
Shop more products by Imperial.

Biggest construction hardware items retail store to buy Nuts, Bolts, Screws & Fasteners

$30.11
In Stock
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Size: 1X10"
  • Thread pitch: 1"-14 UNF
  • Unplated cap screws
  • Material: medium carbon alloy steel
  • Tensile Strength: 150,000 psi minimum
  • Grade 8 Cap Screws comply with SAE J429, ANSI/ASME B18.2.1 hex cap screws

Technical Data:

  • Material: Medium Carbon Alloy Steel
  • Tensile: 150,000 psi minimum
  • Hardness: Rockwell Hardness C33-C39
  • Tempering Temperature: 800° F.(minimum)
  • Decarburization: Meets SAE J121
  • Discontinuities: Meets SAE J1061
  • Threads: UNRF and UNRC Radius Root Class 2A to ANSI/ASME B1.1

Rule of thumb to figure bolt thread length:

  • For bolts under 6": Twice the bolt diameter plus a 1/4"
  • For bolts over 6": Twice the bolt diameter plus a 1/2"
  • This gives you the approximate bolt thread length available




FEATURES

MFR: 17819
SKU: 42625800
Brand: Imperial
