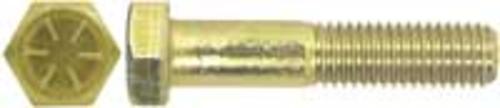

Imperial 16632 USS Hex Head Cap Screw, Grade 8, 5/16x2-3/4, Pkg/100

buy nuts, bolts, screws & fasteners at cheap rate in bulk. wholesale & retail home hardware tools store. home décor ideas, maintenance, repair replacement parts
For maximum holding power, always use a balanced assembly of Grade 8 components; cap screw, hex nut, flat washer, lock washer, Material: Medium Carbon Alloy Steel, Finish: Zinc Yellow, Pkg/100
SKU: 42589654
MFG: 16632
Shop more products by Imperial.

Buy Nuts, Bolts, Screws & Fasteners on sale from largest home hardware tools store in USA

Sold out
$0.70
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Size: 5/16X2-3/4
  • Thread pitch: 5/16-18 UNC
  • Grade 8 Cap Screws comply with SAE J429, ANSI/ASME B18.2.1 hex cap screws
  • For your toughest fastening applications, use Grade 8 fasteners every time!
  • Imperial's zinc; yellow dichromate plating provides the extra corrosion protection not found in regular zinc plating
  • For maximum holding power, always use a balanced assembly of Grade 8 components; cap screw, hexnut, flat washer, lock washer.Quantity: 100 per package
  • Pack of 100

Technical Data:

  • Material: Medium Carbon Alloy Steel
  • Tensile: 150,000 psi minimum
  • Hardness: Rockwell Hardness C33-C39
  • Tempering Temperature: 800° F. (minimum)
  • Finish: Zinc Yellow
  • Decarburization: Meets SAE J121
  • Discontinuities: Meets SAE J1061
  • Threads: UNRF and UNRC Radius Root Class 2A to ANSI/ASME B1.1

Rule of thumb to figure bolt thread length:

  • For bolts under 6": Twice the bolt diameter  plus a 1/4"
  • For bolts over 6": Twice the bolt diameter plus a 1/2"
  • This gives you the approximate bolt thread length available

FEATURES

MFR: 16632
SKU: 42589654
Brand: Imperial
