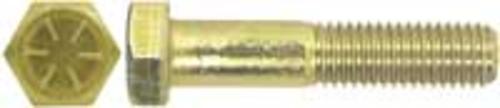

Imperial 16299 USS Hex Head Cap Screw, Grade 8, 1x2

buy nuts, bolts, screws & fasteners at cheap rate in bulk. wholesale & retail construction hardware goods store. home décor ideas, maintenance, repair replacement parts
For maximum holding power, always use a balanced assembly of Grade 8 components; cap screw, hex nut, flat washer, lock washer, Material: Medium Carbon Alloy Steel, Size: 1X2
SKU: 42588486
MFG: 16299
Shop more products by Imperial.

Best online store to shop construction hardware goods. Save big with Life and Home discount coupons

Sold out
$5.95
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Size: 1X2
  • Thread pitch: 1"-8 UNC
  • For your toughest fastening applications, use Grade 8 fasteners every time
  • Grade 8 Cap Screws comply with SAE J429, ANSI/ASME B18.2.1 hex cap screws
  • Imperial's zinc; yellow dichromate plating provides the extra corrosion protection not found in regular zinc plating
  • For maximum holding power, always use a balanced assembly of Grade 8 components; cap screw, hex nut, flat washer, lock washer

Technical Data:

  • Material: Medium Carbon Alloy Steel
  • Tensile: 150,000 psi minimum
  • Hardness: Rockwell Hardness C33-C39
  • Tempering Temperature: 800° F. (minimum)
  • Decarburization: Meets SAE J121
  • Discontinuities: Meets SAE J1061
  • Finish: Zinc; Yellow Dichromate ASTM B633, Type II SC1
  • Threads: UNRF and UNRC Radius Root Class 2A to ANSI/ASME B1.1

Rule of thumb to figure bolt thread length:

  • For bolts under 6": Twice the bolt diameter plus a 1/4"
  • For bolts over 6": Twice the bolt diameter plus a 1/2"
  • This gives you the approximate bolt thread length available

Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm

FEATURES

MFR: 16299
SKU: 42588486
Brand: Imperial
