We offer lowest price on Nuts, Bolts, Screws & Fasteners, save money on large orders with Life and Home.

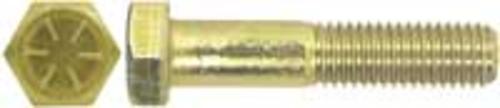

- Size: 3/8X5
- Thread pitch: 3/8-16 UNC
- For your toughest fastening applications, use Grade 8 fasteners every time
- Grade 8 Cap Screws comply with SAE J429, ANSI/ASME B18.2.1 hex cap screws
- Imperial's zinc; yellow dichromate plating provides the extra corrosion protection not found in regular zinc plating
- For maximum holding power, always use a balanced assembly of Grade 8 components; cap screw, hex nut, flat washer, lock washer
- Material: Medium Carbon Alloy Steel
- Tensile: 150,000 psi minimum
- Hardness: Rockwell Hardness C33-C39
- Tempering Temperature: 800° F. (minimum)
- Decarburization: Meets SAE J121
- Discontinuities: Meets SAE J1061
- Finish: Zinc; Yellow Dichromate ASTM B633, Type II SC1
- Threads: UNRF and UNRC Radius Root Class 2A to ANSI/ASME B1.1
Rule of thumb to figure bolt thread length:
For bolts under 6": Twice the bolt diameter plus a 1/4"
For bolts over 6": Twice the bolt diameter plus a 1/2"
This gives you the approximate bolt thread length available
