GE TM3220RCUB2K PowerMark Gold Load Centers Circuit Breaker, 200 Amp

Write a review

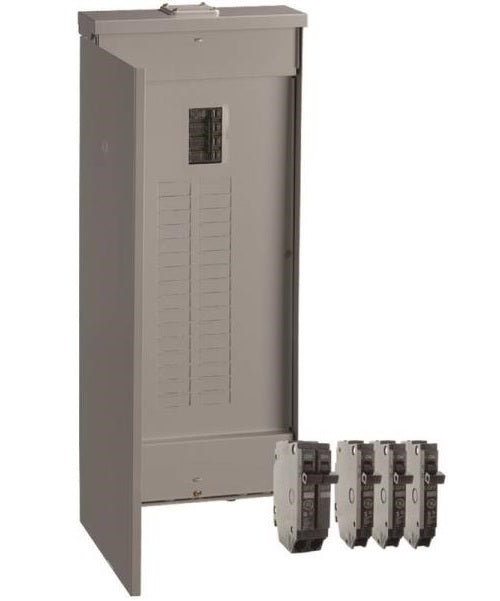

The powermark gold main breaker load center contractor kit is pre-packaged with a selection of circuit breakers. The breaker box is a 1 phase, 3-wire unit with a factory-installed main breaker.
SKU: 42990006
MFG: TM3220RCUB2K
Shop more products by GE.

$163.80
In Stock
Or Use
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Outdoor nema 3R
  • Top or bottom feed
  • Value kit includes outdoor 200-amp main breaker load center, 3 20-amp single-pole and 1 30-amp double-pole THQP 1/2" circuit breakers
  • Includes a sturdy highly-conductive tin-plated copper buss bar and a rust-resistant galvanized box
  • Outdoor NEMA 3R enclosure
  • Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
  • One-piece interior removes and re-installs easily
  • All holes are rated for 14-4 wire and 100 percent rated split neutrals on each side
  • Accepts Q-Line THQL standard, GFCI and AFCI circuit breakers, including GE's exclusive 1/2" THQPs

Specifications:

  • Single-phase
  • 3-wire
  • Amperage: 200
  • Voltage: 120/240-volt
  • 22K AIC rating
  • Dimensions: 34.19" height x 14.69" width x 5.23" depth
  • Number of Spaces/Circuits: 32/40
  • UL Listed and ANSI Certified

FEATURES

MFR: TM3220RCUB2K
SKU: 42990006
UPC: 783164471991
Brand: GE
Weight: 45.0 lb
