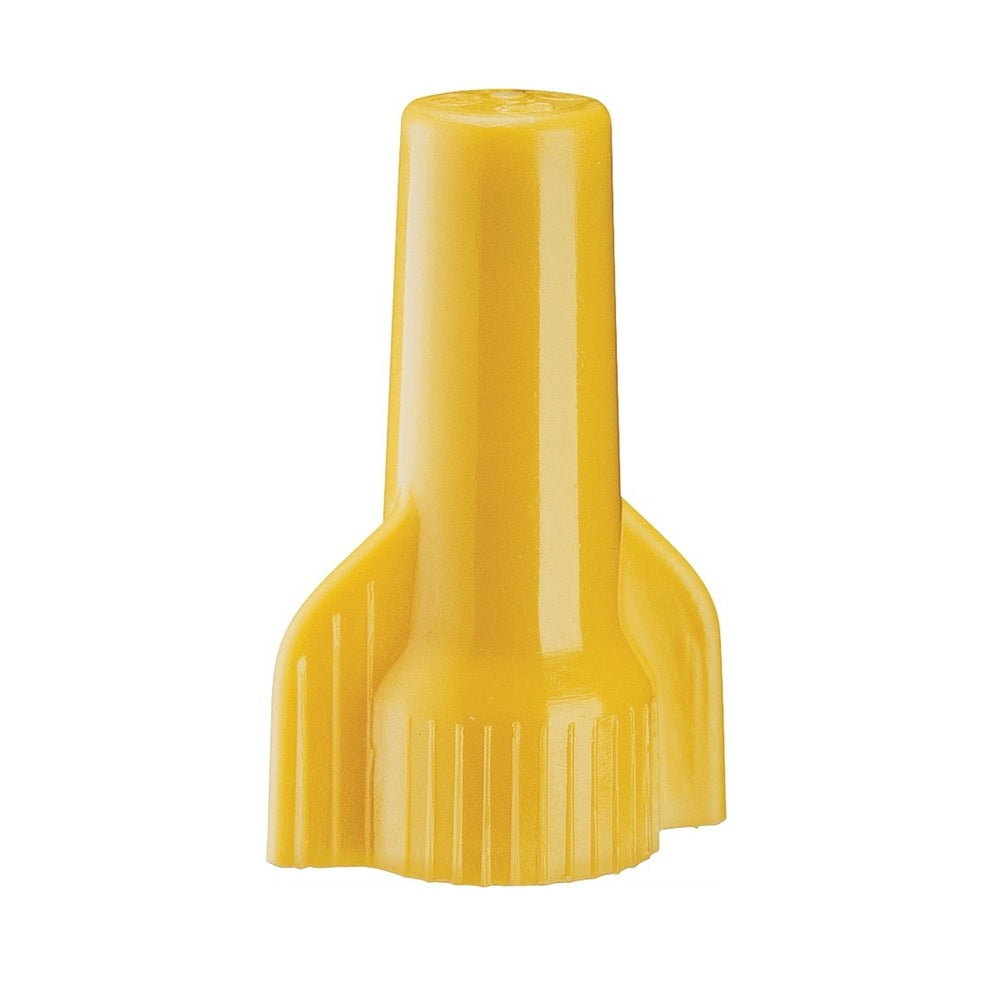

GB Electrical 10-084 WingGard Wire Connector, Yellow

GB Electrical 10-084 WingGard Wire Connector, Yellow
Write a review
The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion.
SKU: 43128363
MFG: 10-084
Shop more products by GB Electrical.

$11.42
In Stock
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Color: Yellow
  • Contact Coating: Zinc
  • Contact Material: Steel
  • Height: 5.46 Inch
  • Housing Material: Polypropylene
  • Length: 1-1/32 Inch
  • Mounting Type: Screw
  • Temperature Rating: 221 deg F
  • Type: Twist-On
  • Voltage Rating: 300/600 V
  • Width: 23/32 Inch
  • Wire Size: 22 to 10 AWG
  • Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
  • Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
  • Flame-retardant properties resist heat distortion up to 221 deg F
  • High-dielectric shell features deep skirt design to prevent exposure of bare wire
  • Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
  • Copper to copper connections only
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/

FEATURES

MFR: 10-084
SKU: 43128363
UPC: 032076100841
Brand: GB Electrical
