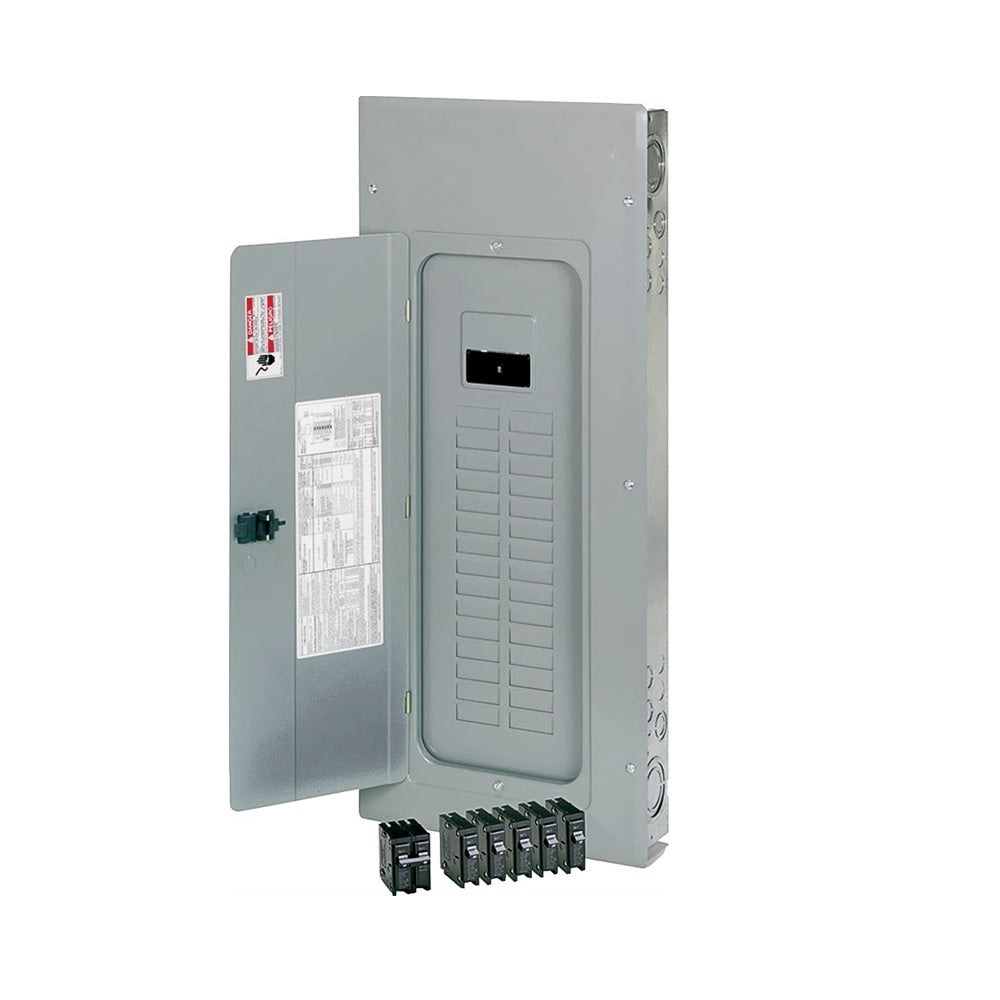

Eaton BRP30B200V25 Main Breaker Load Center, 120/240 Volts
Eaton BRP30B200V25 Main Breaker Load Center, 120/240 Volts
BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances.
SKU: 43077501
MFG: BRP30B200V25
Best electrical repair kits store to buy Electrical Panel Boxes. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION
Highlights:
Galvanized steel enclosure
Single phase
Insulated/bondable split neutral
Main breaker type BW at 25,000 AIC
Ground bar kit (necessary for sub-feeding) sold separately
Tin plated aluminum bus bar. Twin neutral with non removable cross bus
When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application
#2 - 300 kcmil wire range
Electrostatic powder coat, baked urethane painted
Rotates 180 degrees for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally
G1 box
Specifications:
Series: BR
Voltage: 120/240 Volts
Amperage: 200 A
Overall Depth: 3.88"
Dimensions: 14-5/16" width x 34-1/8" height x 3-7/8" depth
1" Spacing
Number of Phases: 1
Includes: (5) BR120, (1) BR230 Circuit Breaker
Wiring Configuration: 3-Wire
Interrupt Rating: 10 kA
Circuit Breaker Type: Main Breaker
Breaker Mounting: Plug-In
Number of Circuits: 40
Buss Bar Material: Aluminum
Enclosure Type: Indoor
ANSI Specified
UL Listed
Value Pack
FEATURES
MFR:
BRP30B200V25
SKU:
43077501
UPC:
786689055257
Brand:
Eaton
