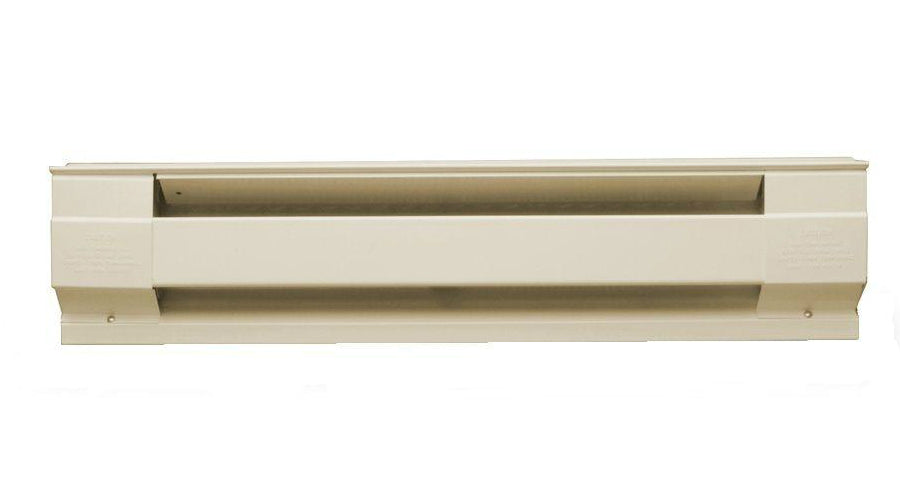

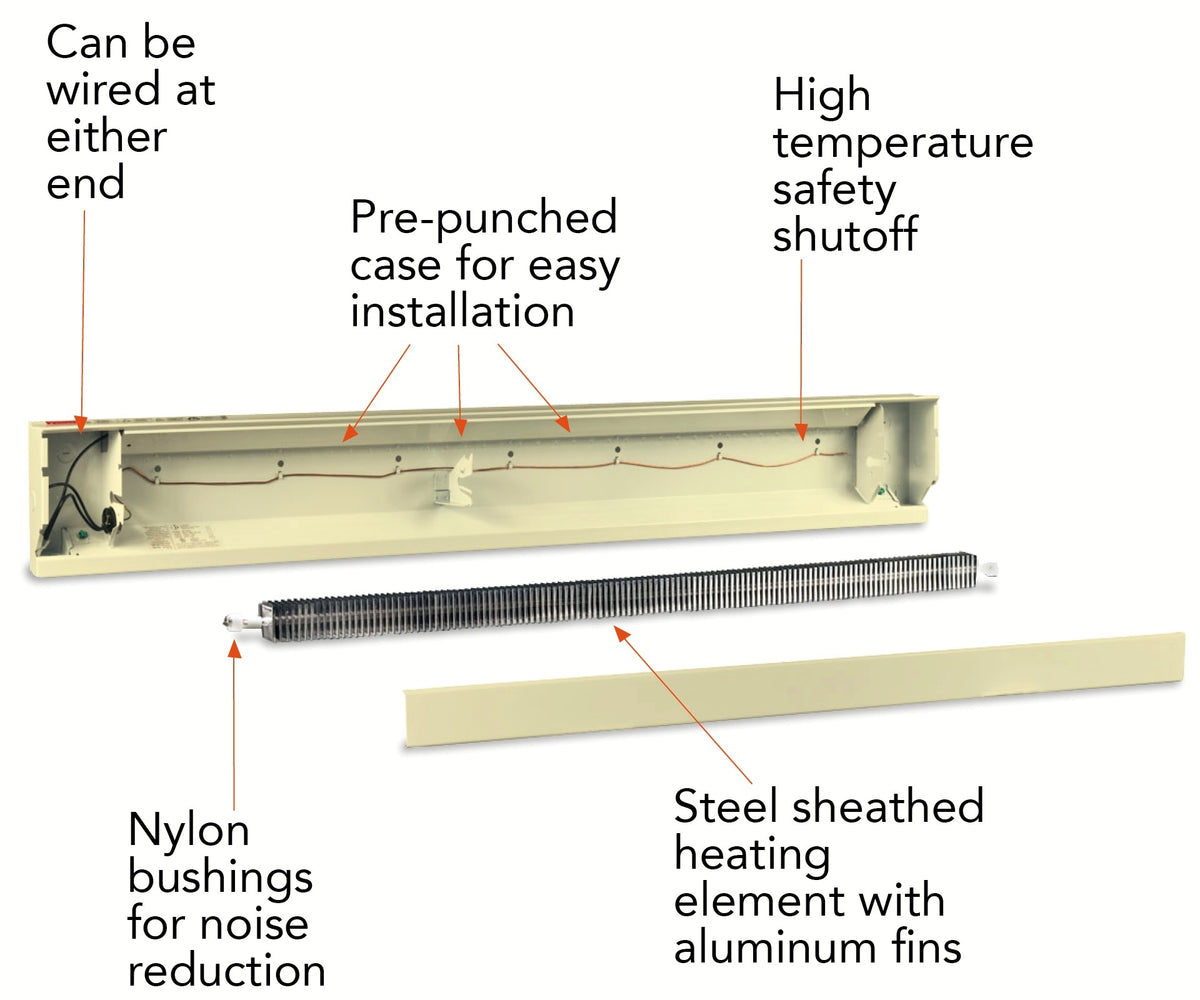

Electric baseboard heaters uses convection to circulate air. By superior design and proper placement under a window area, the electric baseboard case causes air to flow naturally. The cold air falls from the window area as the warm air rises from the heater, causing the air to tumble gently throughout the room. The electric baseboard heater is the number one choice for low cost installation, and the quiet operation makes it the preferred heater for bedrooms.A matching single or double pole thermostat is available to install into either end of the baseboard heater. Since an electrical outlet may not be installed above a heater, use a duplex outlet (BRF12) in either end of the baseboard. To switch between the baseboard heater and a cooling unit, the LTF240 can be utilized. Inside corner connectors are available to fit various designs, such as corner window areas. All baseboard heaters require a thermostat. An optional MTX mounting tool is helpful for installing the heater.
- 240/208 volt dual rated has two black wires
- 120 volt ONLY has one black and one white wire. The white wire is neutral
- 208 volt ONLY has one black and one orange wire
- Color : Almond
- Watts 208V: 500
- Amps 208V: 2.40
