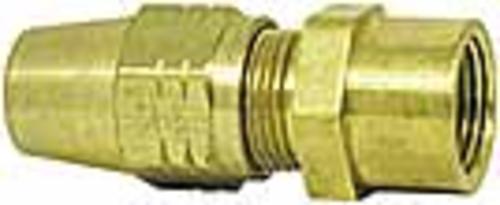

Imperial 90441 Copper Female Connector Air Brake Fitting, 3/8"x3/8"

---

DESCRIPTION

Highlights :

• Material : Brass
• Tube Outside Diameter : 3/8"
• Pipe Thread : 3/8"
• Thread Size : 17/32–24"
• Cross Reference : 1366 x 6 x 6
• Use with copper tubing in air brake systems
• These fittings may also be used with nylon air brake tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut on page G1 in the printed catalog
• Exceeds DOT Pressure Requirements for air brake systems
• Meets SAE, DOT, and Mil. standards and specifications
• Fair resistance to vibration
• Temperature Range : -65° F. to 250° F
• To assemble, turn 1-3/4 turns past hand tight for 1/4 and 3/8 sizes and 3-1/4 turns for 1/2, 5/8, and 3/4 sizes
• Easy to assemble, tubing does not have to be flared or bent
• Exceeds pressure requirements of automotive air brake systems
• Applications : air brake systems, air control, and air brake lines
• Per package 5
