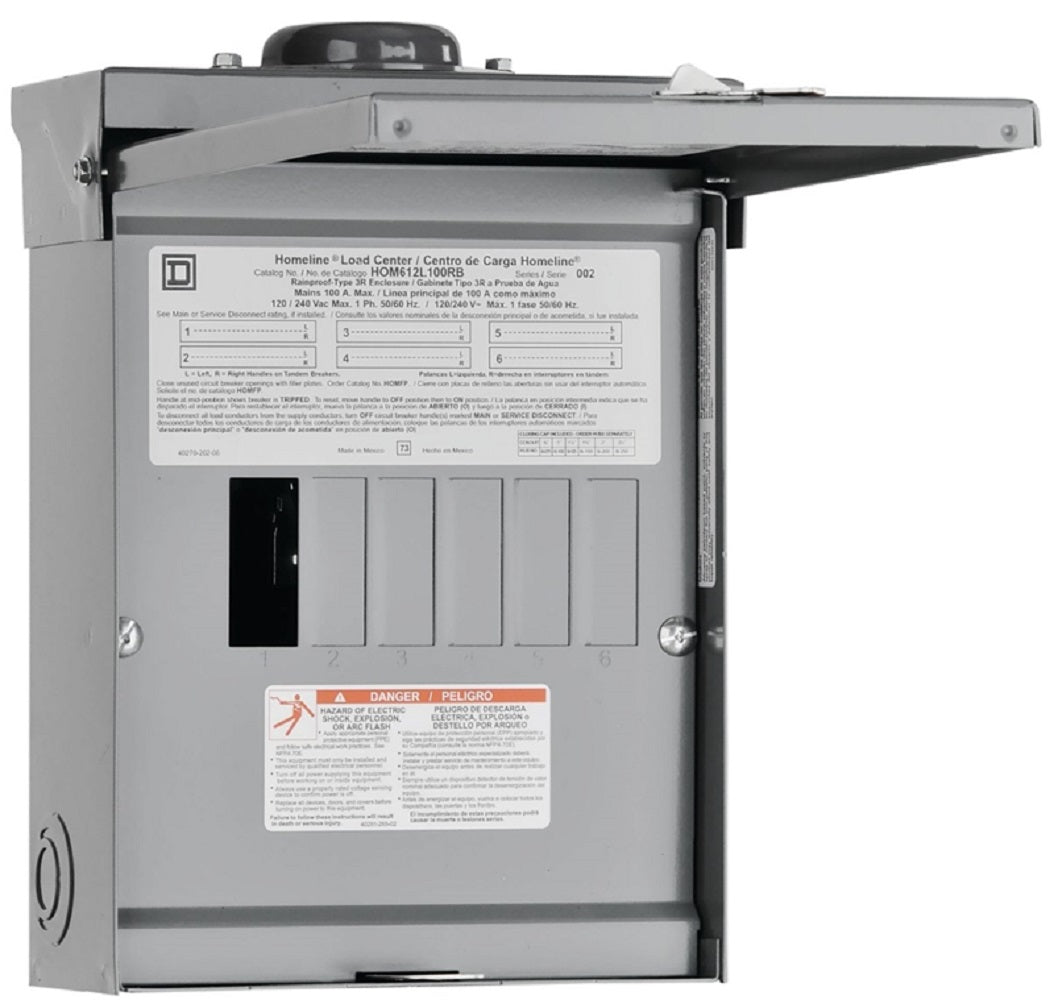

Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom.
SKU: 40096276
MFG: HOM612L100RBCP
Shop more products by Square D.
Biggest supplier for electrical repair tools. Enjoy lowest price on Electrical Panel Boxes
DETAILS
DESCRIPTION
Highlights:
- Breaker/ Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 8 to 1 AWG
- Color: Gray
- Cover/ Lid Type: Surface
- Current Rating: 100 A
- Enclosure Material: Welded Galvannealed Steel
- Enclosure Type: NEMA 3R
- Finish: Baked Enamel
- Interrupt Rating: 10 kA
- Mounting Type: Plug-In
- Number of Circuits: 12
- Number of Phases: 1
- Number Of Spaces: 6
- Voltage Rating: 120/240 V
- Wiring Configuration: 3-Wire
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
FEATURES
MFR:
HOM612L100RBCP
SKU:
40096276
UPC:
047569071256
Brand:
Square D
