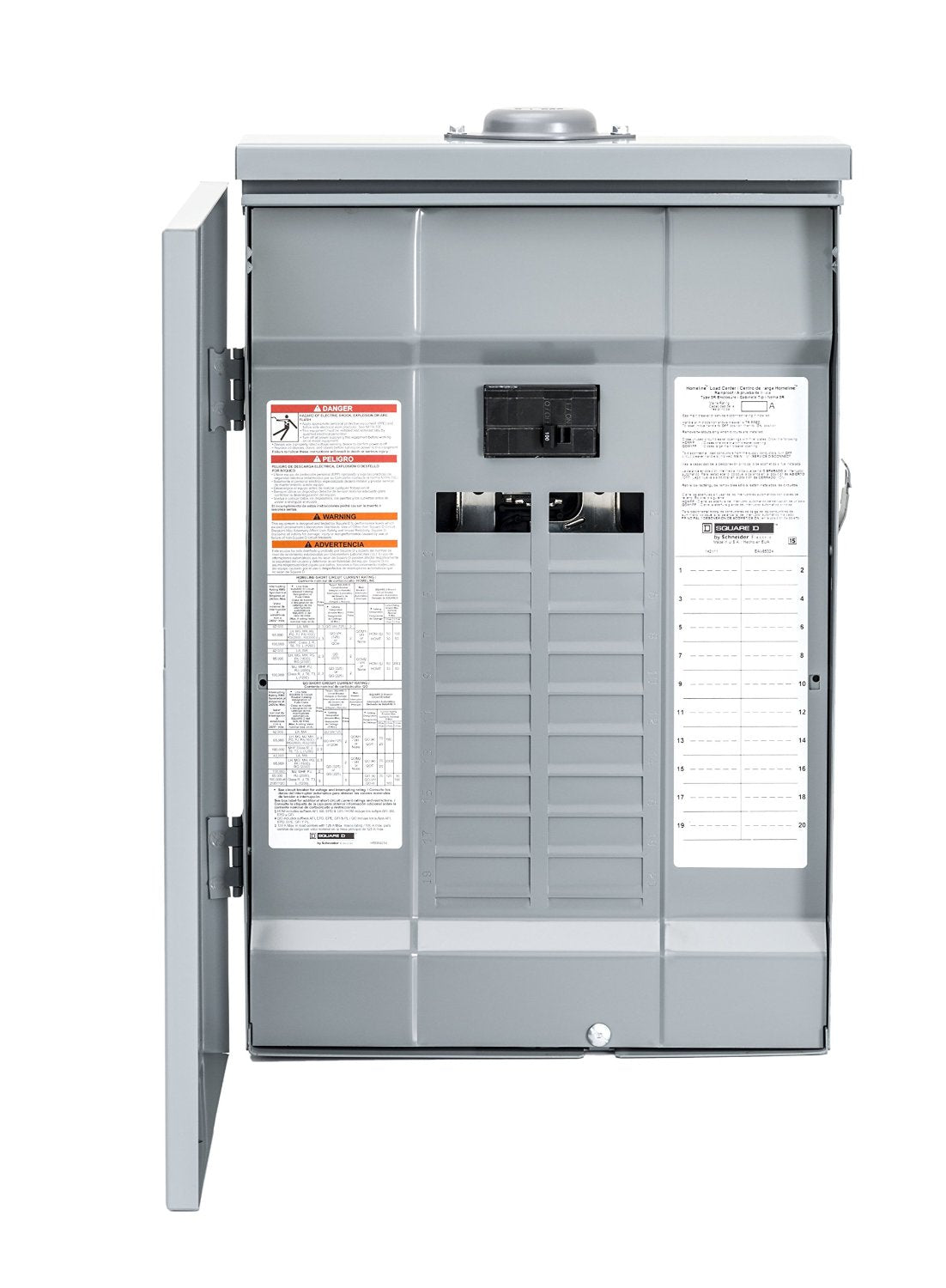

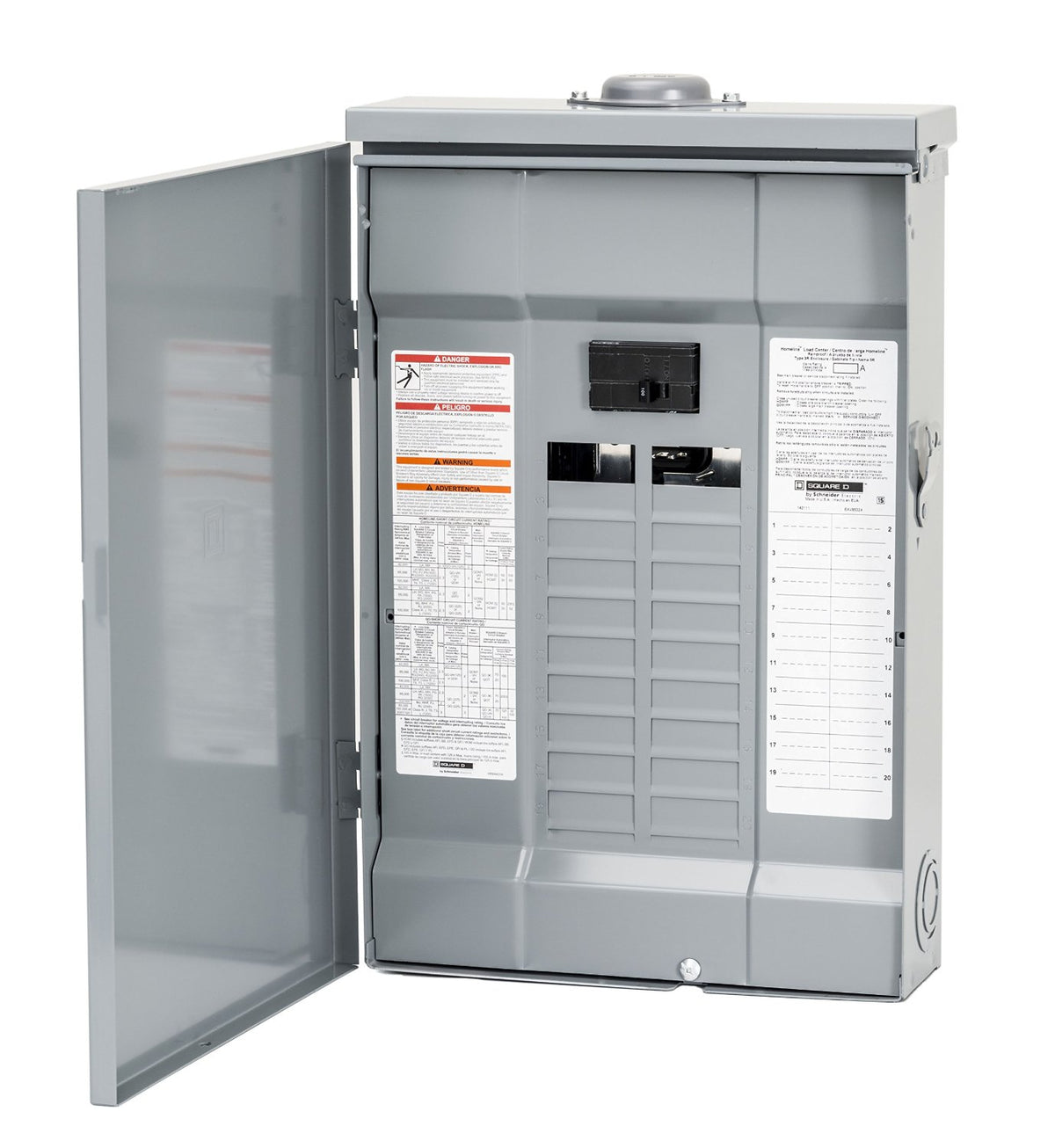

This Outdoor Convertible Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. Includes a rainproof outdoor cover.
SKU: 42972964
MFG: HOM2040M100PRB
Shop more products by Square D.

We offer wide selection of Electrical Panel Boxes, with Life and Home you always get the best deals

Sold out
$149.86
Sold Out
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Volts: 120
  • Amps: 100
  • Number of Spaces: 20
  • Number of Phases: 1
  • Maximum Number of Circuits: 40
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Designed with straight-In mains to save expensive cable and time
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes a rainproof outdoor cover
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
  • UL Listed
Warning: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.

FEATURES

MFR: HOM2040M100PRB
SKU: 42972964
UPC: 785901977322
Brand: Square D
