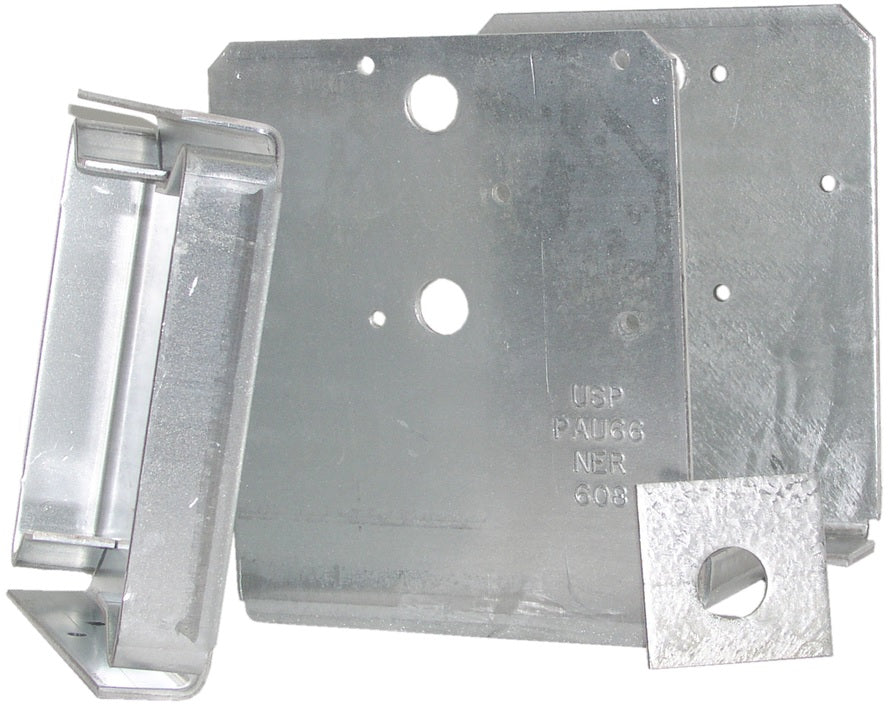

USP Lumber PAU66-TZ Post Anchor, 6" x 6"

Write a review
Used to secure wood posts to concrete footings and to provide moisture damage protection. Higher uplift resistance an optional bolt fastening to post.
SKU: 40875656
MFG: PAU66-TZ
Shop more products by Usp Structural Connectors.

We offer wide selection of Joist Hangers & Connectors, with Life and Home you always get the best deals

$26.81
In Stock
Or Use
Request a Bulk Quote


Thank you for your quote request. We will be in touch.

DETAILS

DESCRIPTION

Highlights:

  • Features a 1" stand-off plate to evaluate wood posts above concrete surfaces
  • Drain slots allow the anchors to shed water
  • Triple zinc finish for ACQ pressure treated lumber
  • Not for fence posts or other unrestrained (not fixed or fastened at top) applications
  • Not designed to resist overturning (moment) loads
  • Requires (12) 16d HDG nails or (2) 1/2" HDG bolts and (1) 5/8" anchor bolt for installation
  • Meets ICC-ES ESR-1881, FL821, L.A. City RR 25779 and Dade County, FL 07-0306.06, PAU44-TZ and PAU66-TZ codes

Specifications:

  • Finish: Triple Zinc Plated
  • Material: Steel
  • Series: PAU
  • Size: 6" x 6"
  • Length: 5"
  • Width: 5-1/2"
  • Minimum Embedment Depth: 4"
  • Fasteners: (1) 5/8" Anchor Bolt, (12) 16d Nail
  • Load Capacity: 2380 lb Uplift Douglas Fir
  • Strength: 2000 psi
  • Edge Distance: 2"
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/

FEATURES

MFR: PAU66-TZ
SKU: 40875656
UPC: 081942113133
Brand: Usp Structural Connectors
Weight: 2.0 lb
