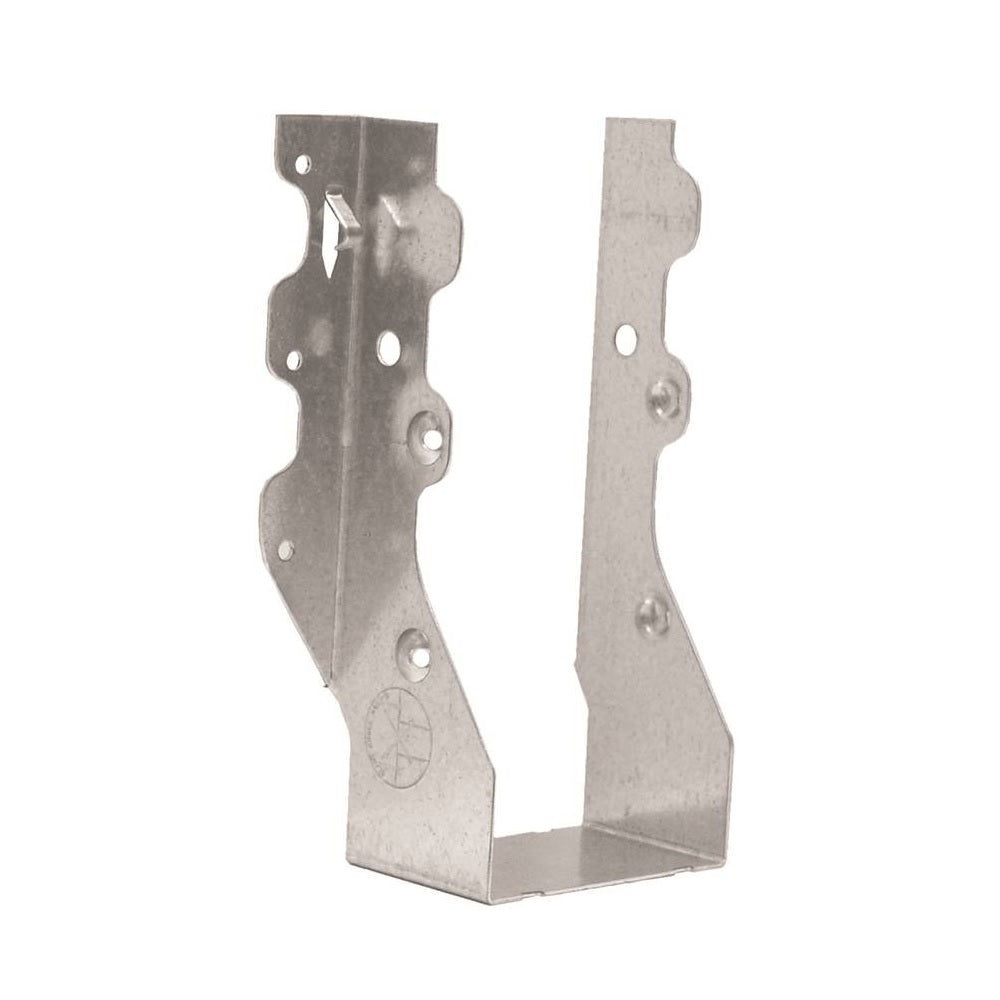

The JUS hanger Series offers double shear nailing. USP's dimple allows for 30 to 45 deg nailing through the joist into the header resulting in higher loads and less nailing.
SKU: 43128383
MFG: JUS28-2TZ
Shop more products by MiTek.
DETAILS
DESCRIPTION
Highlights:
- Finish: Zinc
- Length: 18.0 Inch
- Material: Steel
- Depth: 2 Inch
- Fastener Size: 0.162 Inch Dia x 3-1/2 Inch L
- Fastener Type: Nail
- Height: 6.5 Inch
- Mounting Type: Face
- Size: 2 Inch x 8 to 10 Inch
- Skew Angle: 30 to 45 deg
- Weight Capacity: 1290 lb
- Width: 3-1/8 Inch
Includes:
- (6) 16d Nails Headers (4) 16d Nails Joists
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
JUS28-2TZ
SKU:
43128383
UPC:
081942101475
Brand:
MiTek
