DESCRIPTION

Highlights:

• Cross Reference: 4205 x 8
• Typical Applications: High pressure hydraulic, pneumatic, and chemical processing
• Maximum operating pressure to 6,000 psi
• Excellent vibration resistance

Specifications:

• Finish: zinc-plated, with clear trivalent chromatic
• For Use With: steel tubing (tubing for brazing must be non-coated)
• Sealing Method: o-ring
• Grade: 12L14
• Hex Size: 0.8750"
• Material: Steel
• Pipe Thread: 3/8
• Port Outside Diameter: 3/8"
• Port Thread Size: 0.6875–16

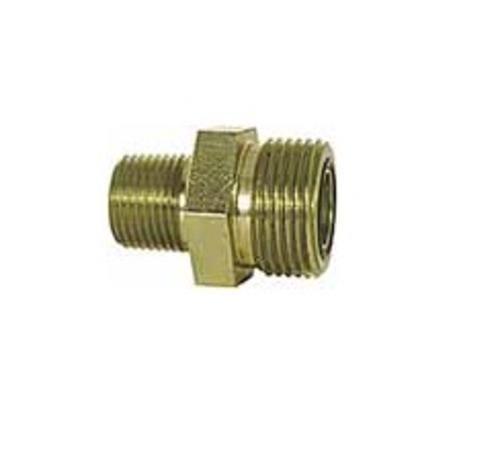

• Style: Male Connector
• System of Measurement: Fractional
• Tube Outside Diameter: 1/2"
• Male Pipe Size: 3/8"
• Tube Thread Size: 0.1875–16
• Type: flat faced o-ring fitting
• Vibration Resistance: excellent
• Working Pressure: Up to 6,000 psi
