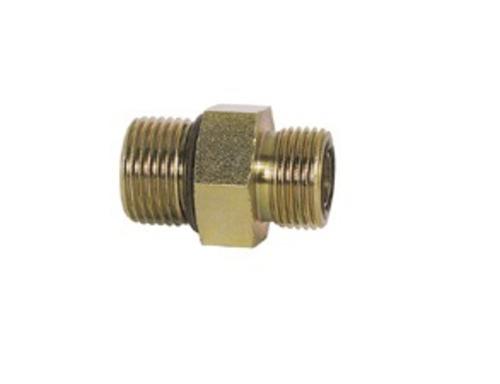

It is used for high pressure hydraulic, pneumatic, and chemical processing. Maximum operating pressure to 6,000 psi. Excellent vibration resistance. Type: straight thread o-ring connector
SKU: 42568805
MFG: 99448
Shop more products by Imperial.
Get best discount deals on automotive care supplies. Your one-stop shop for buying Automotive Hoses
DETAILS
DESCRIPTION
Highlights:
- Reference SAE No. 520120
- Cross Reference: 4315 x 8 x 10
- Typical Applications: High pressure hydraulic, pneumatic, and chemical processing
- Maximum operating pressure to 6,000 psi
- Excellent vibration resistance
Specifications:
- Finish: zinc-plated, with clear trivalent chromatic
- For Use With: steel tubing (tubing for brazing must be non-coated)
- Sealing Method: o-ring
- Grade: 12L14
- Hex Size: 1"
- Material: Steel
- For-Seal Thread Size: 13/16–16
- Port Outside Diameter: 5/8"
- Port Thread Size: 1-14
- Style: straight thread o-ring connector
- System of Measurement: Fractional
- Tube Outside Diameter: 1/2"
- Tube Thread Size: 0.8125–16
- Type: straight thread o-ring connector
- Vibration Resistance: excellent
- Working Pressure: Up to 6,000 psi
FEATURES
MFR:
99448
SKU:
42568805
Brand:
Imperial
