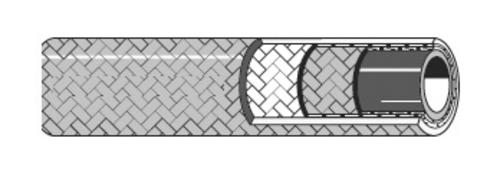

DESCRIPTION

Highlights:

• ABS approved sizes for 5/16" to 1-1/8"
• Cross Reference: H56912
• Quantity: 50'
• Applications: general purpose truck, marine, and hydraulic hose. For air brake (4-12), diesel fuel, grease lines, high temp. petroleum oils and medium pressure hydraulic applications
• Note: Airbrake applications sizes 04-through 12 only. Marine application hydraulic only. ABS approved for sizes 5/16" through 1-1/8"

Specifications:

• Color: Black
• For Use With: Eaton weatherhead crimp hose ends 069 'E' Series Eaton weatherhead field attachable hose ends 247 'N' Series (sizes -6 to -12)
• Hose Inner Diameter: 5/8"
• Hose Outer Diameter: 1-5/64"
• Material (Cover): Fiber Braid
• Material (Inner Tube): CPE
• Material (Reinforcement): two fiber braids and one steel braid
• Meets Standards: SAE 100R5, SAE J1402 TYPE AII, DOT AII, ABS
• Minimum Bend Radius: 6-1/2"
• Minimum Burst Pressure: 6,000 psi
• Style: Truck Hydraulic
• System of Measurement: Fractional
• Temperature Range: Hydraulic Fluid: -55 to 302 Air Brake: -40 to +200 Air: -40 to +212 (Intermittent to 250) °F
• Type: Hose
• Maximum Working Pressure: 1,500 psi
