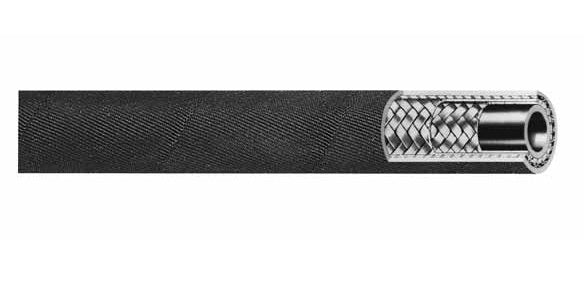

DESCRIPTION

Highlights:

• USCG fuel/lube systems accepted - J1942
• Exceeds SAE 100R16
• MSHA accepted
• Can be used with water/glycol, water, generic hydraulic fluids, and diesel fuel
• For use with Coll-O-Crimp U-Series hose ends or 430 U-Series hose ends
• Most commonly used for high pressure hydraulic lines on off-road construction equipment, farm equipment, and other high pressure applications
• Cross Reference: H24520
• Hose Packaging: 250 feet per box, 1 to 3 pieces per reel, Shortest length ≥ 15 feet, 20% percent of reels could be packaged in lengths from 250 to 300 feet, Eaton will invoice for 100% of the packaged length
• Note: yellow spacer ring, part no. 3120 is required

Specifications:

• Color: Black
• For Use With: Eaton Weatherhead crimp hose ends 'Z' Series 'S' Series (except -10) 'U' Series 430 'U' Series (sizes -12, -16 & -20)
• Hose Inside Diameter: 1-1/4"
• Hose Outside Diameter: 1-23/32"
• Material (Cover): Neoprene
• Material (Inner Tube): Nitrile
• Material (Reinforcement): 2 steel braids
• Meets Standards: SAE 100R16, ABS, J1942, MSHA accepted
• Minimum Bend Radius: 8-1/4"
• Minimum Burst Pressure: 6,500 psi
• Style: High Pressure
• System of Measurement: Fractional
• Temperature Range: -40 to +212 °F
• Type: Hose
• Working Pressure: 1,625 psi
